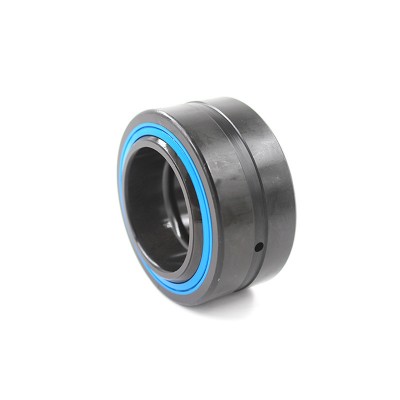

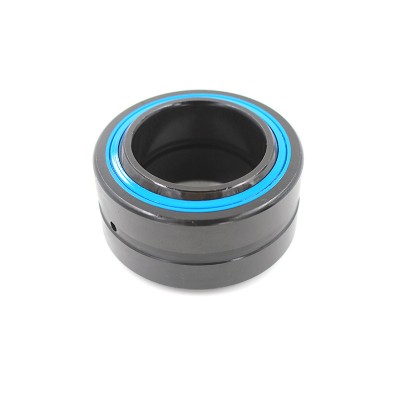

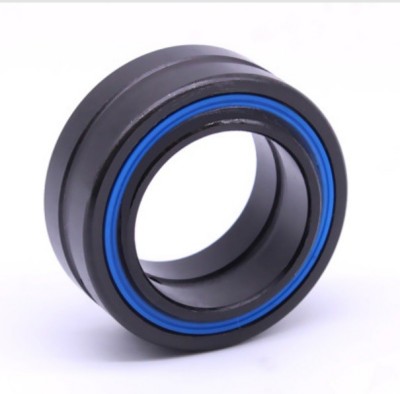

Spherical plain bearing is a type of bearing which allows the rotation and sliding movement between two surfaces. It consists of an inner ring with a spherical convex surface and outer ring with a corresponding spherical concave surface.
There are various types of spherical plain bearings available, including spherical plain radial bearings, angular contact spherical plain bearings, and spherical plain thrust bearings, each designed for specific applications and load conditions.
Lubrication-free spherical plain bearings: suitable for applications where maintenance-free operation and resistance to contamination are essential, such as in food processing equipment, automotive suspension systems and agricultural machinery.
| Part Number | d | D | B | C | dk | Weight |
| GEG120XT-2RS | 120°-0.02 | 210°-0.03 | 115⁰-0.12 | 70°-0.2 | 180 | 15.293 |
| GEG140XT-2RS | 140⁴-0.025 | 230°-0.03 | 130-0.12 | 80°-0.2 | 200 | 19.128 |
| GEG160XT-2RS | 160-0.025 | 260-0.035 | 135°-0.12 | 80°-0.2 | 225 | 25.037 |
| GEG180XT-2RS | 180°-0.025 | 290°-0.035 | 155⁰-0.12 | 100°-0.22 | 250 | 36.251 |
| GEG200XT-2RS | 200-0.03 | 320-0.04 | 165-0.15 | 100-0.26 | 275 | 45.28 |
| GEG220XT-2RS | 220°-0.03 | 340°-0.04 | 175°-0.15 | 100°-0.26 | 300 | 51.378 |
| GEG240XT-2RS | 240-0.03 | 370-0.04 | 190⁰-0.15 | 110°-0.26 | 325 | 65.685 |
| GEG260XT-2RS | 260-0.035 | 400-0.04 | 205°-0.17 | 120°-0.26 | 350 | 82.449 |
| GEG280XT-2RS | 280°-0.035 | 430°-0.045 | 210°-0.17 | 120°-0.3 | 375 | 97.215 |
