DMAG manufactures super fast & super precision bearings for turbo pumps
High-performance , Cost effective , long-lived solutions for replacement of Barden bearings

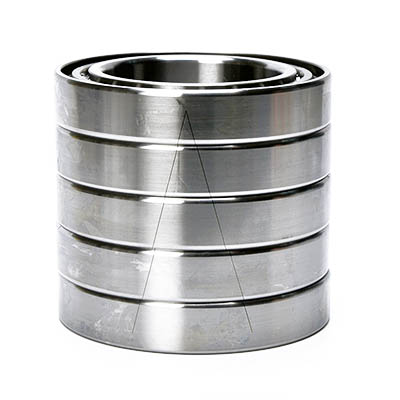

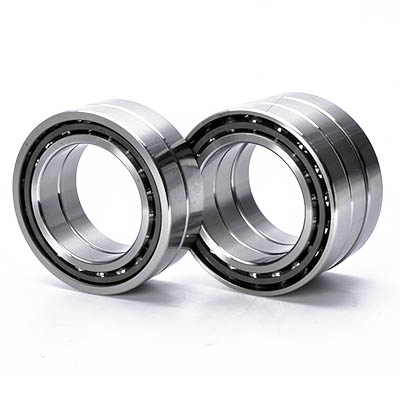

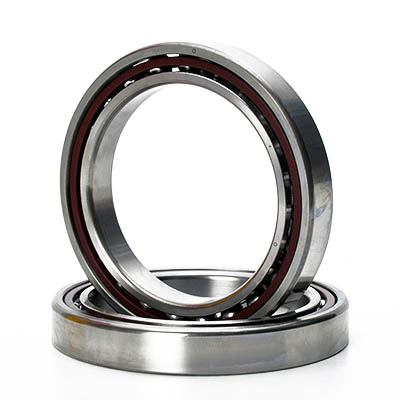

High precision spindle bearings are single row angular contact ball bearings with either a 15° or a 25° contact angle. Containing raceways in both the inner and outer rings, they are designed to accommodate to heavy loads, utmost precision, impeccable accuracy and high-speed applications. They are typically mounted in pairs, carrying thrust load in either direction and providing good rigidity for applications with critical shaft movement.
The balls of high-speed spindle ball bearings are typically made from either steel or ceramic, while the rings are made from corrosion-resistant steel or bearing steel. This type of bearing is usually supported by solid cage either in nylon plastic, peek or brass based on the specific temperature requirement. They are often finished with grease, oil or air lubricating coating. Open and closed versions are available.
Benefits for our customers:
Part Number | Arrangement | Contact Angle | Bore | Outer | Width | Dynamic Load Rating | Static Load Rating | Max Speed |
(Cr) | (Cor) | (Grease) | ||||||
(degree) | (d) | (D) | (B) | (KN) | (KN) | (RPM) | ||
71900 ACD/HCP4A | DB DF DT DG | 25 | 10 mm | 22 mm | 6 mm | 2.42 | 1.06 | 85000 |
71900 ACD/P4A | DB DF DT DG | 25 | 10 mm | 22 mm | 6 mm | 2.42 | 1.06 | 70000 |
71900 CD/HCP4A | DB DF DT DG | 15 | 10 mm | 22 mm | 6 mm | 2.51 | 1.1 | 95000 |
71900 CD/P4A | DB DF DT DG | 15 | 10 mm | 22 mm | 6 mm | 2.51 | 1.1 | 80000 |
7000 ACD/HCP4A | DB DF DT DG | 25 | 10 mm | 26 mm | 8 mm | 3.97 | 1.6 | 80000 |
7000 ACD/P4A | DB DF DT DG | 25 | 10 mm | 26 mm | 8 mm | 3.97 | 1.6 | 67000 |
7000 ACE/HCP4A | DB DF DT DG | 25 | 10 mm | 26 mm | 8 mm | 2.86 | 1.14 | 98000 |
7000 ACE/P4A | DB DF DT DG | 25 | 10 mm | 26 mm | 8 mm | 2.86 | 1.14 | 83000 |
7000 CD/HCP4A | DB DF DT DG | 15 | 10 mm | 26 mm | 8 mm | 4.1 | 1.66 | 90000 |
7000 CD/P4A | DB DF DT DG | 15 | 10 mm | 26 mm | 8 mm | 4.1 | 1.66 | 75000 |
7000 CE/HCP4A | DB DF DT DG | 15 | 10 mm | 26 mm | 8 mm | 3.02 | 1.18 | 109000 |
7000 CE/P4A | DB DF DT DG | 15 | 10 mm | 26 mm | 8 mm | 3.02 | 1.18 | 90000 |
7200 ACD/HCP4A | DB DF DT DG | 25 | 10 mm | 30 mm | 9 mm | 4.36 | 1.86 | 63000 |
7200 ACD/P4A | DB DF DT DG | 25 | 10 mm | 30 mm | 9 mm | 4.36 | 1.86 | 53000 |
7200 CD/HCP4A | DB DF DT DG | 15 | 10 mm | 30 mm | 9 mm | 4.49 | 1.93 | 70000 |
7200 CD/P4A | DB DF DT DG | 15 | 10 mm | 30 mm | 9 mm | 4.49 | 1.93 | 60000 |
71901 ACD/HCP4A | DB DF DT DG | 25 | 12 mm | 24 mm | 6 mm | 2.55 | 1.18 | 75000 |
71901 ACD/P4A | DB DF DT DG | 25 | 12 mm | 24 mm | 6 mm | 2.55 | 1.18 | 63000 |
71901 CD/HCP4A | DB DF DT DG | 15 | 12 mm | 24 mm | 6 mm | 2.65 | 1.25 | 85000 |
71901 CD/P4A | DB DF DT DG | 15 | 12 mm | 24 mm | 6 mm | 2.65 | 1.25 | 70000 |
7001 ACD/HCP4A | DB DF DT DG | 25 | 12 mm | 28 mm | 8 mm | 4.36 | 1.83 | 70000 |
7001 ACD/P4A | DB DF DT DG | 25 | 12 mm | 28 mm | 8 mm | 4.36 | 1.83 | 60000 |
7001 ACE/HCP4A | DB DF DT DG | 25 | 12 mm | 28 mm | 8 mm | 3.07 | 1.27 | 88000 |
7001 ACE/P4A | DB DF DT DG | 25 | 12 mm | 28 mm | 8 mm | 3.07 | 1.27 | 73000 |
7001 CD/HCP4A | DB DF DT DG | 15 | 12 mm | 28 mm | 8 mm | 4.49 | 1.9 | 80000 |
7001 CD/P4A | DB DF DT DG | 15 | 12 mm | 28 mm | 8 mm | 4.49 | 1.9 | 67000 |
7001 CE/HCP4A | DB DF DT DG | 15 | 12 mm | 28 mm | 8 mm | 3.19 | 1.34 | 98000 |
7001 CE/P4A | DB DF DT DG | 15 | 12 mm | 28 mm | 8 mm | 3.19 | 1.34 | 80000 |
7201 ACD/HCP4A | DB DF DT DG | 25 | 12 mm | 32 mm | 10 mm | 5.72 | 2.45 | 56000 |
7201 ACD/P4A | DB DF DT DG | 25 | 12 mm | 32 mm | 10 mm | 5.72 | 2.45 | 48000 |
7201 CD/HCP4A | DB DF DT DG | 15 | 12 mm | 32 mm | 10 mm | 5.85 | 2.55 | 67000 |
7201 CD/P4A | DB DF DT DG | 15 | 12 mm | 32 mm | 10 mm | 5.85 | 2.55 | 53000 |
71902 ACD/HCP4A | DB DF DT DG | 25 | 15 mm | 28 mm | 7 mm | 3.77 | 1.8 | 63000 |
71902 ACD/P4A | DB DF DT DG | 25 | 15 mm | 28 mm | 7 mm | 3.77 | 1.8 | 53000 |
71902 CD/HCP4A | DB DF DT DG | 15 | 15 mm | 28 mm | 7 mm | 3.97 | 1.9 | 70000 |
71902 CD/P4A | DB DF DT DG | 15 | 15 mm | 28 mm | 7 mm | 3.97 | 1.9 | 60000 |
7002 ACD/HCP4A | DB DF DT DG | 25 | 15 mm | 32 mm | 9 mm | 4.94 | 2.32 | 60000 |
7002 ACD/P4A | DB DF DT DG | 25 | 15 mm | 32 mm | 9 mm | 4.94 | 2.32 | 50000 |
7002 ACE/HCP4A | DB DF DT DG | 25 | 15 mm | 32 mm | 9 mm | 4.23 | 1.83 | 75000 |
7002 ACE/P4A | DB DF DT DG | 25 | 15 mm | 32 mm | 9 mm | 4.23 | 1.83 | 63000 |
7002 CD/HCP4A | DB DF DT DG | 15 | 15 mm | 32 mm | 9 mm | 5.2 | 2.45 | 67000 |
7002 CD/P4A | DB DF DT DG | 15 | 15 mm | 32 mm | 9 mm | 5.2 | 2.45 | 56000 |
7002 CE/HCP4A | DB DF DT DG | 15 | 15 mm | 32 mm | 9 mm | 4.42 | 1.93 | 83000 |
7002 CE/P4A | DB DF DT DG | 15 | 15 mm | 32 mm | 9 mm | 4.42 | 1.93 | 68000 |
7202 ACD/HCP4A | DB DF DT DG | 25 | 15 mm | 35 mm | 11 mm | 7.15 | 3.2 | 50000 |
7202 ACD/P4A | DB DF DT DG | 25 | 15 mm | 35 mm | 11 mm | 7.15 | 3.2 | 43000 |
7202 CD/HCP4A | DB DF DT DG | 15 | 15 mm | 35 mm | 11 mm | 7.41 | 3.35 | 60000 |
7202 CD/P4A | DB DF DT DG | 15 | 15 mm | 35 mm | 11 mm | 7.41 | 3.35 | 48000 |
71903 ACD/HCP4A | DB DF DT DG | 25 | 17 mm | 30 mm | 7 mm | 3.97 | 2 | 56000 |
71903 ACD/P4A | DB DF DT DG | 25 | 17 mm | 30 mm | 7 mm | 3.97 | 2 | 48000 |
71903 CD/HCP4A | DB DF DT DG | 15 | 17 mm | 30 mm | 7 mm | 4.16 | 2.08 | 63000 |
71903 CD/P4A | DB DF DT DG | 15 | 17 mm | 30 mm | 7 mm | 4.16 | 2.08 | 53000 |
7003 ACD/HCP4A | DB DF DT DG | 25 | 17 mm | 35 mm | 10 mm | 6.5 | 3.1 | 56000 |
7003 ACD/P4A | DB DF DT DG | 25 | 17 mm | 35 mm | 10 mm | 6.5 | 3.1 | 45000 |
7003 ACE/HCP4A | DB DF DT DG | 25 | 17 mm | 35 mm | 10 mm | 5.59 | 2.45 | 68000 |
7003 ACE/P4A | DB DF DT DG | 25 | 17 mm | 35 mm | 10 mm | 5.59 | 2.45 | 56000 |
7003 CD/HCP4A | DB DF DT DG | 15 | 17 mm | 35 mm | 10 mm | 6.76 | 3.25 | 60000 |
7003 CD/P4A | DB DF DT DG | 15 | 17 mm | 35 mm | 10 mm | 6.76 | 3.25 | 50000 |
7003 CE/HCP4A | DB DF DT DG | 15 | 17 mm | 35 mm | 10 mm | 5.85 | 2.55 | 75000 |
7003 CE/P4A | DB DF DT DG | 15 | 17 mm | 35 mm | 10 mm | 5.85 | 2.55 | 63000 |
7203 ACD/HCP4A | DB DF DT DG | 25 | 17 mm | 40 mm | 12 mm | 8.84 | 4 | 45000 |
7203 ACD/P4A | DB DF DT DG | 25 | 17 mm | 40 mm | 12 mm | 8.84 | 4 | 38000 |
7203 CD/HCP4A | DB DF DT DG | 15 | 17 mm | 40 mm | 12 mm | 9.23 | 4.15 | 53000 |
7203 CD/P4A | DB DF DT DG | 15 | 17 mm | 40 mm | 12 mm | 9.23 | 4.15 | 43000 |
71904 ACD/HCP4A | DB DF DT DG | 25 | 20 mm | 37 mm | 9 mm | 5.72 | 3.05 | 48000 |
71904 ACD/P4A | DB DF DT DG | 25 | 20 mm | 37 mm | 9 mm | 5.72 | 3.05 | 40000 |
71904 ACDTP/HCP4B | DB DF DT DG | 25 | 20 mm | 37 mm | 9 mm | 5.72 | 3.05 | 48000 |
71904 ACDTP/P4B | DB DF DT DG | 25 | 20 mm | 37 mm | 9 mm | 5.72 | 3.05 | 40000 |
71904 ACE/HCP4A | DB DF DT DG | 25 | 20 mm | 37 mm | 9 mm | 4.68 | 2.28 | 60000 |
71904 ACE/P4A | DB DF DT DG | 25 | 20 mm | 37 mm | 9 mm | 4.68 | 2.28 | 52000 |
71904 CD/HCP4A | DB DF DT DG | 15 | 20 mm | 37 mm | 9 mm | 6.05 | 3.2 | 53000 |
71904 CD/P4A | DB DF DT DG | 15 | 20 mm | 37 mm | 9 mm | 6.05 | 3.2 | 45000 |
71904 CDTP/HCP4B | DB DF DT DG | 15 | 20 mm | 37 mm | 9 mm | 6.05 | 3.2 | 53000 |
71904 CDTP/P4B | DB DF DT DG | 15 | 20 mm | 37 mm | 9 mm | 6.05 | 3.2 | 45000 |
71904 CE/HCP4A | DB DF DT DG | 15 | 20 mm | 37 mm | 9 mm | 4.88 | 2.4 | 68000 |
71904 CE/P4A | DB DF DT DG | 15 | 20 mm | 37 mm | 9 mm | 4.88 | 2.4 | 56000 |
7004 ACD/HCP4A | DB DF DT DG | 25 | 20 mm | 42 mm | 12 mm | 8.32 | 4.15 | 45000 |
7004 ACD/P4A | DB DF DT DG | 25 | 20 mm | 42 mm | 12 mm | 8.32 | 4.15 | 38000 |
7004 ACE/HCP4A | DB DF DT DG | 25 | 20 mm | 42 mm | 12 mm | 7.15 | 3.25 | 58000 |
7004 ACE/HCP4BVG275 | DB DF DT DG | 25 | 20 mm | 42 mm | 12 mm | 7.15 | 3.25 | 58000 |
7004 ACE/P4A | DB DF DT DG | 25 | 20 mm | 42 mm | 12 mm | 7.15 | 3.25 | 48000 |
7004 ACE/P4BVG275 | DB DF DT DG | 25 | 20 mm | 42 mm | 12 mm | 7.15 | 3.25 | 48000 |
7004 CD/HCP4A | DB DF DT DG | 15 | 20 mm | 42 mm | 12 mm | 8.71 | 4.3 | 50000 |
7004 CD/P4A | DB DF DT DG | 15 | 20 mm | 42 mm | 12 mm | 8.71 | 4.3 | 43000 |
7004 CE/HCP4A | DB DF DT DG | 15 | 20 mm | 42 mm | 12 mm | 7.41 | 3.35 | 65000 |
7004 CE/HCP4BVG275 | DB DF DT DG | 15 | 20 mm | 42 mm | 12 mm | 7.41 | 3.35 | 65000 |
7004 CE/P4A | DB DF DT DG | 15 | 20 mm | 42 mm | 12 mm | 7.41 | 3.35 | 54000 |
7004 CE/P4BVG275 | DB DF DT DG | 15 | 20 mm | 42 mm | 12 mm | 7.41 | 3.35 | 54000 |
7204 ACD/HCP4A | DB DF DT DG | 25 | 20 mm | 47 mm | 14 mm | 11.4 | 5.6 | 38000 |
7204 ACD/P4A | DB DF DT DG | 25 | 20 mm | 47 mm | 14 mm | 11.4 | 5.6 | 32000 |
7204 CD/HCP4A | DB DF DT DG | 15 | 20 mm | 47 mm | 14 mm | 11.9 | 5.85 | 43000 |
7204 CD/P4A | DB DF DT DG | 15 | 20 mm | 47 mm | 14 mm | 11.9 | 5.85 | 36000 |
71905 ACD/HCP4A | DB DF DT DG | 25 | 25 mm | 42 mm | 9 mm | 6.37 | 3.8 | 40000 |
71905 ACD/P4A | DB DF DT DG | 25 | 25 mm | 42 mm | 9 mm | 6.37 | 3.8 | 34000 |
71905 ACDTP/HCP4B | DB DF DT DG | 25 | 25 mm | 42 mm | 9 mm | 6.37 | 3.8 | 40000 |
71905 ACDTP/P4B | DB DF DT DG | 25 | 25 mm | 42 mm | 9 mm | 6.37 | 3.8 | 34000 |
71905 ACE/HCP4A | DB DF DT DG | 25 | 25 mm | 42 mm | 9 mm | 4.94 | 2.7 | 52000 |
71905 ACE/P4A | DB DF DT DG | 25 | 25 mm | 42 mm | 9 mm | 4.94 | 2.7 | 44000 |
71905 CD/HCP4A | DB DF DT DG | 15 | 25 mm | 42 mm | 9 mm | 6.76 | 4 | 45000 |
71905 CD/P4A | DB DF DT DG | 15 | 25 mm | 42 mm | 9 mm | 6.76 | 4 | 38000 |
71905 CDTP/HCP4B | DB DF DT DG | 15 | 25 mm | 42 mm | 9 mm | 6.76 | 4 | 45000 |
71905 CDTP/P4B | DB DF DT DG | 15 | 25 mm | 42 mm | 9 mm | 6.76 | 4 | 38000 |
71905 CE/HCP4A | DB DF DT DG | 15 | 25 mm | 42 mm | 9 mm | 5.27 | 2.85 | 58000 |
71905 CE/P4A | DB DF DT DG | 15 | 25 mm | 42 mm | 9 mm | 5.27 | 2.85 | 49000 |
7005 ACD/HCP4A | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 9.23 | 5 | 40000 |
7005 ACD/P4A | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 9.23 | 5 | 34000 |
7005 ACDTP/HCP4B | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 9.23 | 5 | 40000 |
7005 ACDTP/P4B | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 9.23 | 5 | 34000 |
7005 ACE/HCP4A | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 7.93 | 3.9 | 50000 |
7005 ACE/HCP4BVG275 | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 7.93 | 3.9 | 50000 |
7005 ACE/P4A | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 7.93 | 3.9 | 42000 |
7005 ACE/P4BVG275 | DB DF DT DG | 25 | 25 mm | 47 mm | 12 mm | 7.93 | 3.9 | 42000 |
7005 CD/HCP4A | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 9.56 | 5.2 | 43000 |
7005 CD/P4A | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 9.56 | 5.2 | 36000 |
7005 CDTP/HCP4B | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 9.56 | 5.2 | 43000 |
7005 CDTP/P4B | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 9.56 | 5.2 | 36000 |
7005 CE/HCP4A | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 8.32 | 4.15 | 56000 |
7005 CE/HCP4BVG275 | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 8.32 | 4.15 | 56000 |
7005 CE/P4A | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 8.32 | 4.15 | 46000 |
7005 CE/P4BVG275 | DB DF DT DG | 15 | 25 mm | 47 mm | 12 mm | 8.32 | 4.15 | 46000 |
7005 FW/HC | DB DF DT DG | 18 | 25 mm | 47 mm | 12 mm | 8.19 | 4.05 | 49000 |
7205 ACD/HCP4A | DB DF DT DG | 25 | 25 mm | 52 mm | 15 mm | 13 | 6.95 | 32000 |
7205 ACD/P4A | DB DF DT DG | 25 | 25 mm | 52 mm | 15 mm | 13 | 6.95 | 26000 |
7205 CD/HCP4A | DB DF DT DG | 15 | 25 mm | 52 mm | 15 mm | 13.5 | 7.2 | 38000 |
7205 CD/P4A | DB DF DT DG | 15 | 25 mm | 52 mm | 15 mm | 13.5 | 7.2 | 30000 |
71906 ACB/HCP4A | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 4.62 | 3 | 43000 |
71906 ACB/P4A | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 4.62 | 3 | 36000 |
71906 ACD/HCP4A | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 6.76 | 4.3 | 36000 |
71906 ACD/P4A | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 6.76 | 4.3 | 30000 |
71906 ACDTP/HCP4B | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 6.76 | 4.3 | 36000 |
71906 ACDTP/P4B | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 6.76 | 4.3 | 30000 |
71906 ACE/HCP4A | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 5.27 | 3.1 | 44000 |
71906 ACE/P4A | DB DF DT DG | 25 | 30 mm | 47 mm | 9 mm | 5.27 | 3.1 | 37000 |
71906 CB/HCP4A | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 4.88 | 3.15 | 48000 |
71906 CB/P4A | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 4.88 | 3.15 | 40000 |
71906 CD/HCP4A | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 7.15 | 4.55 | 40000 |
71906 CD/P4A | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 7.15 | 4.55 | 32000 |
71906 CDTP/HCP4B | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 7.15 | 4.55 | 40000 |
71906 CDTP/P4B | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 7.15 | 4.55 | 32000 |
71906 CE/HCP4A | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 5.59 | 3.25 | 49000 |
71906 CE/P4A | DB DF DT DG | 15 | 30 mm | 47 mm | 9 mm | 5.59 | 3.25 | 41000 |
7006 ACB/HCP4A | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 6.18 | 3.9 | 40000 |
7006 ACB/P4A | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 6.18 | 3.9 | 34000 |
7006 ACD/HCP4A | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 13.8 | 7.65 | 34000 |
7006 ACD/P4A | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 13.8 | 7.65 | 28000 |
7006 ACDTP/HCP4B | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 13.8 | 7.65 | 34000 |
7006 ACDTP/P4B | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 13.8 | 7.65 | 28000 |
7006 ACE/HCP4A | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 8.84 | 5 | 42000 |
7006 ACE/HCP4BVG275 | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 8.84 | 5 | 42000 |
7006 ACE/P4A | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 8.84 | 5 | 35000 |
7006 ACE/P4BVG275 | DB DF DT DG | 25 | 30 mm | 55 mm | 13 mm | 8.84 | 5 | 35000 |
7006 CB/HCP4A | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 6.5 | 4.15 | 43000 |
7006 CB/P4A | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 6.5 | 4.15 | 36000 |
7006 CD/HCP4A | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 14.3 | 8 | 38000 |
7006 CD/P4A | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 14.3 | 8 | 32000 |
7006 CDTP/HCP4B | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 14.3 | 8 | 38000 |
7006 CDTP/P4B | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 14.3 | 8 | 32000 |
7006 CE/HCP4A | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 9.36 | 5.2 | 47000 |
7006 CE/HCP4BVG275 | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 9.36 | 5.2 | 47000 |
7006 CE/P4A | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 9.36 | 5.2 | 39000 |
7006 CE/P4BVG275 | DB DF DT DG | 15 | 30 mm | 55 mm | 13 mm | 9.36 | 5.2 | 39000 |
7006 FW/HC | DB DF DT DG | 18 | 30 mm | 55 mm | 13 mm | 9.23 | 5.2 | 41000 |
7206 ACD/HCP4A | DB DF DT DG | 25 | 30 mm | 62 mm | 16 mm | 23.4 | 15.3 | 26000 |
7206 ACD/P4A | DB DF DT DG | 25 | 30 mm | 62 mm | 16 mm | 23.4 | 15.3 | 20000 |
7206 CD/HCP4A | DB DF DT DG | 15 | 30 mm | 62 mm | 16 mm | 24.2 | 16 | 32000 |
7206 CD/P4A | DB DF DT DG | 15 | 30 mm | 62 mm | 16 mm | 24.2 | 16 | 24000 |
71907 ACB/HCP4A | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 4.88 | 3.45 | 36000 |
71907 ACB/P4A | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 4.88 | 3.45 | 30000 |
71907 ACD/HCP4A | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 9.23 | 6.2 | 28000 |
71907 ACD/P4A | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 9.23 | 6.2 | 22000 |
71907 ACDTP/HCP4B | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 9.23 | 6.2 | 28000 |
71907 ACDTP/P4B | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 9.23 | 6.2 | 22000 |
71907 ACE/HCP4A | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 7.28 | 4.5 | 38000 |
71907 ACE/P4A | DB DF DT DG | 25 | 35 mm | 55 mm | 10 mm | 7.28 | 4.5 | 32000 |
71907 CB/HCP4A | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 5.07 | 3.65 | 40000 |
71907 CB/P4A | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 5.07 | 3.65 | 34000 |
71907 CD/HCP4A | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 9.75 | 6.55 | 32000 |
71907 CD/P4A | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 9.75 | 6.55 | 26000 |
71907 CDTP/HCP4B | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 9.75 | 6.55 | 32000 |
71907 CDTP/P4B | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 9.75 | 6.55 | 26000 |
71907 CE/HCP4A | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 7.61 | 4.75 | 43000 |
71907 CE/P4A | DB DF DT DG | 15 | 35 mm | 55 mm | 10 mm | 7.61 | 4.75 | 36000 |
7007 ACB/HCP4A | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 6.5 | 4.55 | 34000 |
7007 ACB/P4A | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 6.5 | 4.55 | 28000 |
7007 ACD/HCP4A | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 14.8 | 9 | 24000 |
7007 ACD/P4A | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 14.8 | 9 | 20000 |
7007 ACDTP/HCP4B | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 14.8 | 9 | 24000 |
7007 ACDTP/P4B | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 14.8 | 9 | 20000 |
7007 ACE/HCP4A | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 11.1 | 6.3 | 36000 |
7007 ACE/HCP4BVG275 | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 11.1 | 6.3 | 36000 |
7007 ACE/P4A | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 11.1 | 6.3 | 31000 |
7007 ACE/P4BVG275 | DB DF DT DG | 25 | 35 mm | 62 mm | 14 mm | 11.1 | 6.3 | 31000 |
7007 CB/HCP4A | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 6.89 | 4.8 | 38000 |
7007 CB/P4A | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 6.89 | 4.8 | 32000 |
7007 CD/HCP4A | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 15.6 | 9.5 | 28000 |
7007 CD/P4A | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 15.6 | 9.5 | 24000 |
7007 CDTP/HCP4B | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 15.6 | 9.5 | 28000 |
7007 CDTP/P4B | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 15.6 | 9.5 | 24000 |
7007 CE/HCP4A | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 11.4 | 6.55 | 40000 |
7007 CE/HCP4BVG275 | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 11.4 | 6.55 | 40000 |
7007 CE/P4A | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 11.4 | 6.55 | 34000 |
7007 CE/P4BVG275 | DB DF DT DG | 15 | 35 mm | 62 mm | 14 mm | 11.4 | 6.55 | 34000 |
7007 FW/HC | DB DF DT DG | 18 | 35 mm | 62 mm | 14 mm | 11.4 | 6.55 | 35000 |
7207 ACD/HCP4A | DB DF DT DG | 25 | 35 mm | 72 mm | 17 mm | 30.7 | 20.8 | 20000 |
7207 ACD/P4A | DB DF DT DG | 25 | 35 mm | 72 mm | 17 mm | 30.7 | 20.8 | 18000 |
7207 CD/HCP4A | DB DF DT DG | 15 | 35 mm | 72 mm | 17 mm | 31.9 | 21.6 | 26000 |
7207 CD/P4A | DB DF DT DG | 15 | 35 mm | 72 mm | 17 mm | 31.9 | 21.6 | 20000 |
71908 ACB/HCP4A | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 5.07 | 3.9 | 32000 |
71908 ACB/P4A | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 5.07 | 3.9 | 28000 |
71908 ACD/HCP4A | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 11.7 | 8 | 24000 |
71908 ACD/P4A | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 11.7 | 8 | 20000 |
71908 ACDTP/HCP4B | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 11.7 | 8 | 24000 |
71908 ACDTP/P4B | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 11.7 | 8 | 20000 |
71908 ACE/HCP4A | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 9.23 | 5.85 | 34000 |
71908 ACE/P4A | DB DF DT DG | 25 | 40 mm | 62 mm | 12 mm | 9.23 | 5.85 | 28000 |
71908 CB/HCP4A | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 5.4 | 4.15 | 36000 |
71908 CB/P4A | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 5.4 | 4.15 | 30000 |
71908 CD/HCP4A | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 12.4 | 8.5 | 26000 |
71908 CD/P4A | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 12.4 | 8.5 | 22000 |
71908 CDTP/HCP4B | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 12.4 | 8.5 | 26000 |
71908 CDTP/P4B | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 12.4 | 8.5 | 22000 |
71908 CE/HCP4A | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 9.75 | 6.1 | 38000 |
71908 CE/P4A | DB DF DT DG | 15 | 40 mm | 62 mm | 12 mm | 9.75 | 6.1 | 32000 |
7008 ACB/HCP4A | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 6.89 | 5.3 | 32000 |
7008 ACB/P4A | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 6.89 | 5.3 | 26000 |
7008 ACD/HCP4A | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 15.9 | 10.4 | 22000 |
7008 ACD/P4A | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 15.9 | 10.4 | 19000 |
7008 ACDTP/HCP4B | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 15.9 | 10.4 | 22000 |
7008 ACDTP/P4B | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 15.9 | 10.4 | 19000 |
7008 ACE/HCP4A | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 11.7 | 7.2 | 32000 |
7008 ACE/HCP4BVG275 | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 11.7 | 7.2 | 32000 |
7008 ACE/P4A | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 11.7 | 7.2 | 27000 |
7008 ACE/P4BVG275 | DB DF DT DG | 25 | 40 mm | 68 mm | 15 mm | 11.7 | 7.2 | 27000 |
7008 CB/HCP4A | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 7.41 | 5.6 | 34000 |
7008 CB/P4A | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 7.41 | 5.6 | 28000 |
7008 CD/HCP4A | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 16.8 | 11 | 24000 |
7008 CD/P4A | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 16.8 | 11 | 20000 |
7008 CDTP/HCP4B | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 16.8 | 11 | 24000 |
7008 CDTP/P4B | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 16.8 | 11 | 20000 |
7008 CE/HCP4A | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 12.4 | 7.65 | 36000 |
7008 CE/HCP4BVG275 | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 12.4 | 7.65 | 36000 |
7008 CE/P4A | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 12.4 | 7.65 | 30000 |
7008 CE/P4BVG275 | DB DF DT DG | 15 | 40 mm | 68 mm | 15 mm | 12.4 | 7.65 | 30000 |
7008 FW/HC | DB DF DT DG | 18 | 40 mm | 68 mm | 15 mm | 12.1 | 7.5 | 31000 |
7208 ACD/HCP4A | DB DF DT DG | 25 | 40 mm | 80 mm | 18 mm | 31.9 | 22.8 | 19000 |
7208 ACD/P4A | DB DF DT DG | 25 | 40 mm | 80 mm | 18 mm | 31.9 | 22.8 | 16000 |
7208 CD/HCP4A | DB DF DT DG | 15 | 40 mm | 80 mm | 18 mm | 33.8 | 24 | 22000 |
7208 CD/P4A | DB DF DT DG | 15 | 40 mm | 80 mm | 18 mm | 33.8 | 24 | 18000 |
71909 ACB/HCP4A | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 7.02 | 5.5 | 30000 |
71909 ACB/P4A | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 7.02 | 5.5 | 24000 |
71909 ACD/HCP4A | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 12.4 | 9 | 20000 |
71909 ACD/P4A | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 12.4 | 9 | 17000 |
71909 ACDTP/HCP4B | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 12.4 | 9 | 20000 |
71909 ACDTP/P4B | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 12.4 | 9 | 17000 |
71909 ACE/HCP4A | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 9.75 | 6.55 | 30000 |
71909 ACE/P4A | DB DF DT DG | 25 | 45 mm | 68 mm | 12 mm | 9.75 | 6.55 | 25000 |
71909 CB/HCP4A | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 7.41 | 5.85 | 32000 |
71909 CB/P4A | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 7.41 | 5.85 | 28000 |
71909 CD/HCP4A | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 13 | 9.5 | 24000 |
71909 CD/P4A | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 13 | 9.5 | 19000 |
71909 CDTP/HCP4B | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 13 | 9.5 | 24000 |
71909 CDTP/P4B | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 13 | 9.5 | 19000 |
71909 CE/HCP4A | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 10.1 | 6.95 | 34000 |
71909 CE/P4A | DB DF DT DG | 15 | 45 mm | 68 mm | 12 mm | 10.1 | 6.95 | 29000 |
7009 ACB/HCP4A | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 9.04 | 6.8 | 28000 |
7009 ACB/P4A | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 9.04 | 6.8 | 24000 |
7009 ACD/HCP4A | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 27.6 | 21.6 | 20000 |
7009 ACD/P4A | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 27.6 | 21.6 | 17000 |
7009 ACDTP/HCP4B | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 27.6 | 21.6 | 20000 |
7009 ACDTP/P4B | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 27.6 | 21.6 | 17000 |
7009 ACE/HCP4A | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 12.1 | 8.15 | 29000 |
7009 ACE/HCP4BVG275 | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 12.1 | 8.15 | 29000 |
7009 ACE/P4A | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 12.1 | 8.15 | 24000 |
7009 ACE/P4BVG275 | DB DF DT DG | 25 | 45 mm | 75 mm | 16 mm | 12.1 | 8.15 | 24000 |
7009 CB/HCP4A | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 9.56 | 7.2 | 30000 |
7009 CB/P4A | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 9.56 | 7.2 | 26000 |
7009 CD/HCP4A | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 28.6 | 22.4 | 22000 |
7009 CD/P4A | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 28.6 | 22.4 | 19000 |
7009 CDTP/HCP4B | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 28.6 | 22.4 | 22000 |
7009 CDTP/P4B | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 28.6 | 22.4 | 19000 |
7009 CE/HCP4A | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 13 | 8.5 | 32000 |
7009 CE/HCP4BVG275 | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 13 | 8.5 | 32000 |
7009 CE/P4A | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 13 | 8.5 | 27000 |
7009 CE/P4BVG275 | DB DF DT DG | 15 | 45 mm | 75 mm | 16 mm | 13 | 8.5 | 27000 |
7009 FW/HC | DB DF DT DG | 18 | 45 mm | 75 mm | 16 mm | 12.7 | 8.5 | |
7209 ACD/HCP4A | DB DF DT DG | 25 | 45 mm | 85 mm | 19 mm | 41 | 30 | 17000 |
7209 ACD/P4A | DB DF DT DG | 25 | 45 mm | 85 mm | 19 mm | 41 | 30 | 15000 |
7209 CD/HCP4A | DB DF DT DG | 15 | 45 mm | 85 mm | 19 mm | 42.3 | 31 | 20000 |
7209 CD/P4A | DB DF DT DG | 15 | 45 mm | 85 mm | 19 mm | 42.3 | 31 | 17000 |
71910 ACB/HCP4A | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 7.28 | 6 | 28000 |
71910 ACB/P4A | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 7.28 | 6 | 22000 |
71910 ACD/HCP4A | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 12.7 | 9.8 | 19000 |
71910 ACD/P4A | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 12.7 | 9.8 | 16000 |
71910 ACDTP/HCP4B | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 12.7 | 9.8 | 19000 |
71910 ACDTP/P4B | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 12.7 | 9.8 | 16000 |
71910 ACE/HCP4A | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 12.1 | 8.15 | 28000 |
71910 ACE/P4A | DB DF DT DG | 25 | 50 mm | 72 mm | 12 mm | 12.1 | 8.15 | 23000 |
71910 CB/HCP4A | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 7.8 | 6.3 | 30000 |
71910 CB/P4A | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 7.8 | 6.3 | 26000 |
71910 CD/HCP4A | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 13.5 | 10.4 | 22000 |
71910 CD/P4A | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 13.5 | 10.4 | 17000 |
71910 CDTP/HCP4B | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 13.5 | 10.4 | 22000 |
71910 CDTP/P4B | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 13.5 | 10.4 | 17000 |
71910 CE/HCP4A | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 12.7 | 8.65 | 32000 |
71910 CE/P4A | DB DF DT DG | 15 | 50 mm | 72 mm | 12 mm | 12.7 | 8.65 | 26000 |
7010 ACB/HCP4A | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 9.36 | 7.35 | 26000 |
7010 ACB/P4A | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 9.36 | 7.35 | 22000 |
7010 ACD/HCP4A | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 28.1 | 23.2 | 18000 |
7010 ACD/P4A | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 28.1 | 23.2 | 15000 |
7010 ACE/HCP4A | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 14.8 | 10 | 27000 |
7010 ACE/HCP4BVG275 | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 14.8 | 10 | 27000 |
7010 ACE/P4A | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 14.8 | 10 | 23000 |
7010 ACE/P4BVG275 | DB DF DT DG | 25 | 50 mm | 80 mm | 16 mm | 14.8 | 10 | 23000 |
7010 CB/HCP4A | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 9.95 | 7.8 | 28000 |
7010 CB/P4A | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 9.95 | 7.8 | 24000 |
7010 CD/HCP4A | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 29.6 | 24 | 20000 |
7010 CD/P4A | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 29.6 | 24 | 17000 |
7010 CE/HCP4A | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 15.6 | 10.6 | 30000 |
7010 CE/HCP4BVG275 | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 15.6 | 10.6 | 30000 |
7010 CE/P4A | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 15.6 | 10.6 | 25000 |
7010 CE/P4BVG275 | DB DF DT DG | 15 | 50 mm | 80 mm | 16 mm | 15.6 | 10.6 | 25000 |
7010 FW/HC | DB DF DT DG | 18 | 50 mm | 80 mm | 16 mm | 15.3 | 10.4 | 26000 |
7210 ACD/HCP4A | DB DF DT DG | 25 | 50 mm | 90 mm | 20 mm | 42.3 | 32.5 | 16000 |
7210 ACD/P4A | DB DF DT DG | 25 | 50 mm | 90 mm | 20 mm | 42.3 | 32.5 | 14000 |
7210 CD/HCP4A | DB DF DT DG | 15 | 50 mm | 90 mm | 20 mm | 44.9 | 34 | 19000 |
7210 CD/P4A | DB DF DT DG | 15 | 50 mm | 90 mm | 20 mm | 44.9 | 34 | 16000 |
71911 ACB/HCP4A | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 9.36 | 7.65 | 24000 |
71911 ACB/P4A | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 9.36 | 7.65 | 20000 |
71911 ACD/HCP4A | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 18.2 | 13.7 | 17000 |
71911 ACD/P4A | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 18.2 | 13.7 | 15000 |
71911 ACDTP/HCP4B | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 18.2 | 13.7 | 17000 |
71911 ACDTP/P4B | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 18.2 | 13.7 | 15000 |
71911 ACE/HCP4A | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 14.6 | 10.2 | 25000 |
71911 ACE/P4A | DB DF DT DG | 25 | 55 mm | 80 mm | 13 mm | 14.6 | 10.2 | 21000 |
71911 CB/HCP4A | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 9.95 | 8.15 | 28000 |
71911 CB/P4A | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 9.95 | 8.15 | 22000 |
71911 CD/HCP4A | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 19.5 | 14.6 | 19000 |
71911 CD/P4A | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 19.5 | 14.6 | 16000 |
71911 CDTP/HCP4B | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 19.5 | 14.6 | 19000 |
71911 CDTP/P4B | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 19.5 | 14.6 | 16000 |
71911 CE/HCP4A | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 15.3 | 10.6 | 28000 |
71911 CE/P4A | DB DF DT DG | 15 | 55 mm | 80 mm | 13 mm | 15.3 | 10.6 | 24000 |
7011 ACB/HCP4A | DB DF DT DG | 25 | 55 mm | 90 mm | 18 mm | 13.3 | 10.4 | 24000 |
7011 ACB/P4A | DB DF DT DG | 25 | 55 mm | 90 mm | 18 mm | 13.3 | 10.4 | 19000 |
7011 ACD/HCP4A | DB DF DT DG | 25 | 55 mm | 90 mm | 18 mm | 37.1 | 31 | 17000 |
7011 ACD/P4A | DB DF DT DG | 25 | 55 mm | 90 mm | 18 mm | 37.1 | 31 | 14000 |
7011 ACE/HCP4A | DB DF DT DG | 25 | 55 mm | 90 mm | 18 mm | 15.9 | 11.6 | 23000 |
7011 ACE/P4A | DB DF DT DG | 25 | 55 mm | 90 mm | 18 mm | 15.9 | 11.6 | 19000 |
7011 CB/HCP4A | DB DF DT DG | 15 | 55 mm | 90 mm | 18 mm | 14 | 11 | 26000 |
7011 CB/P4A | DB DF DT DG | 15 | 55 mm | 90 mm | 18 mm | 14 | 11 | 22000 |
7011 CD/HCP4A | DB DF DT DG | 15 | 55 mm | 90 mm | 18 mm | 39.7 | 32.5 | 18000 |
7011 CD/P4A | DB DF DT DG | 15 | 55 mm | 90 mm | 18 mm | 39.7 | 32.5 | 15000 |
7011 CE/HCP4A | DB DF DT DG | 15 | 55 mm | 90 mm | 18 mm | 16.8 | 12.2 | 25000 |
7011 CE/P4A | DB DF DT DG | 15 | 55 mm | 90 mm | 18 mm | 16.8 | 12.2 | 22000 |
7011 FW/HC | DB DF DT DG | 18 | 55 mm | 90 mm | 18 mm | 16.5 | 12 | 22000 |
7211 ACD/HCP4A | DB DF DT DG | 25 | 55 mm | 100 mm | 21 mm | 52.7 | 40.5 | 15000 |
7211 ACD/P4A | DB DF DT DG | 25 | 55 mm | 100 mm | 21 mm | 52.7 | 40.5 | 13000 |
7211 CD/HCP4A | DB DF DT DG | 15 | 55 mm | 100 mm | 21 mm | 55.3 | 43 | 17000 |
7211 CD/P4A | DB DF DT DG | 15 | 55 mm | 100 mm | 21 mm | 55.3 | 43 | 14000 |
71912 ACB/HCP4A | DB DF DT DG | 25 | 60 mm | 85 mm | 13 mm | 9.75 | 8.3 | 22000 |
71912 ACB/P4A | DB DF DT DG | 25 | 60 mm | 85 mm | 13 mm | 9.75 | 8.3 | 19000 |
71912 ACD/HCP4A | DB DF DT DG | 25 | 60 mm | 85 mm | 13 mm | 18.6 | 14.6 | 16000 |
71912 ACD/P4A | DB DF DT DG | 25 | 60 mm | 85 mm | 13 mm | 18.6 | 14.6 | 14000 |
71912 ACE/HCP4A | DB DF DT DG | 25 | 60 mm | 85 mm | 13 mm | 15.3 | 11.2 | 23000 |
71912 ACE/P4A | DB DF DT DG | 25 | 60 mm | 85 mm | 13 mm | 15.3 | 11.2 | 19500 |
71912 CB/HCP4A | DB DF DT DG | 15 | 60 mm | 85 mm | 13 mm | 10.4 | 8.8 | 26000 |
71912 CB/P4A | DB DF DT DG | 15 | 60 mm | 85 mm | 13 mm | 10.4 | 8.8 | 22000 |
71912 CD/HCP4A | DB DF DT DG | 15 | 60 mm | 85 mm | 13 mm | 19.9 | 15.3 | 18000 |
71912 CD/P4A | DB DF DT DG | 15 | 60 mm | 85 mm | 13 mm | 19.9 | 15.3 | 15000 |
71912 CE/HCP4A | DB DF DT DG | 15 | 60 mm | 85 mm | 13 mm | 16.3 | 11.8 | 26000 |
71912 CE/P4A | DB DF DT DG | 15 | 60 mm | 85 mm | 13 mm | 16.3 | 11.8 | 22000 |
7012 ACB/HCP4A | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 13.5 | 11.4 | 22000 |
7012 ACB/P4A | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 13.5 | 11.4 | 17000 |
7012 ACD/HCP4A | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 39 | 33.5 | 15000 |
7012 ACD/P4A | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 39 | 33.5 | 13000 |
7012 ACDTP/HCP4B | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 39 | 33.5 | 15000 |
7012 ACDTP/P4B | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 39 | 33.5 | 13000 |
7012 ACE/HCP4A | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 16.3 | 12.2 | 22000 |
7012 ACE/HCP4BVG275 | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 16.3 | 12.2 | 22000 |
7012 ACE/P4A | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 16.3 | 12.2 | 18000 |
7012 ACE/P4BVG275 | DB DF DT DG | 25 | 60 mm | 95 mm | 18 mm | 16.3 | 12.2 | 18000 |
7012 CB/HCP4A | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 14.6 | 12 | 24000 |
7012 CB/P4A | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 14.6 | 12 | 19000 |
7012 CD/HCP4A | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 40.3 | 34.5 | 17000 |
7012 CD/P4A | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 40.3 | 34.5 | 14000 |
7012 CDTP/HCP4B | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 40.3 | 34.5 | 17000 |
7012 CDTP/P4B | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 40.3 | 34.5 | 14000 |
7012 CE/HCP4A | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 17.2 | 12.9 | 24000 |
7012 CE/HCP4BVG275 | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 17.2 | 12.9 | 24000 |
7012 CE/P4A | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 17.2 | 12.9 | 20000 |
7012 CE/P4BVG275 | DB DF DT DG | 15 | 60 mm | 95 mm | 18 mm | 17.2 | 12.9 | 20000 |
7212 ACD/HCP4A | DB DF DT DG | 25 | 60 mm | 110 mm | 22 mm | 55.3 | 45 | 14000 |
7212 ACD/P4A | DB DF DT DG | 25 | 60 mm | 110 mm | 22 mm | 55.3 | 45 | 11000 |
7212 CD/HCP4A | DB DF DT DG | 15 | 60 mm | 110 mm | 22 mm | 57.2 | 46.5 | 16000 |
7212 CD/P4A | DB DF DT DG | 15 | 60 mm | 110 mm | 22 mm | 57.2 | 46.5 | 13000 |
71913 ACB/HCP4A | DB DF DT DG | 25 | 65 mm | 90 mm | 13 mm | 9.95 | 8.8 | 22000 |
71913 ACB/P4A | DB DF DT DG | 25 | 65 mm | 90 mm | 13 mm | 9.95 | 8.8 | 18000 |
71913 ACD/HCP4A | DB DF DT DG | 25 | 65 mm | 90 mm | 13 mm | 19.5 | 16 | 15000 |
71913 ACD/P4A | DB DF DT DG | 25 | 65 mm | 90 mm | 13 mm | 19.5 | 16 | 13000 |
71913 ACE/HCP4A | DB DF DT DG | 25 | 65 mm | 90 mm | 13 mm | 15.6 | 11.8 | 22000 |
71913 ACE/P4A | DB DF DT DG | 25 | 65 mm | 90 mm | 13 mm | 15.6 | 11.8 | 18000 |
71913 CB/HCP4A | DB DF DT DG | 15 | 65 mm | 90 mm | 13 mm | 10.6 | 9.5 | 24000 |
71913 CB/P4A | DB DF DT DG | 15 | 65 mm | 90 mm | 13 mm | 10.6 | 9.5 | 20000 |
71913 CD/HCP4A | DB DF DT DG | 15 | 65 mm | 90 mm | 13 mm | 20.8 | 17 | 17000 |
71913 CD/P4A | DB DF DT DG | 15 | 65 mm | 90 mm | 13 mm | 20.8 | 17 | 14000 |
71913 CE/HCP4A | DB DF DT DG | 15 | 65 mm | 90 mm | 13 mm | 16.5 | 12.5 | 24000 |
71913 CE/P4A | DB DF DT DG | 15 | 65 mm | 90 mm | 13 mm | 16.5 | 12.5 | 20000 |
7013 ACB/HCP4A | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 14.6 | 12.2 | 19000 |
7013 ACB/P4A | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 14.6 | 12.2 | 16000 |
7013 ACD/HCP4A | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 39 | 35.5 | 15000 |
7013 ACD/P4A | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 39 | 35.5 | 12000 |
7013 ACDTP/HCP4B | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 39 | 35.5 | 15000 |
7013 ACDTP/P4B | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 39 | 35.5 | 12000 |
7013 ACE/HCP4A | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 19.5 | 14.6 | 20000 |
7013 ACE/HCP4BVG275 | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 19.5 | 14.6 | 20000 |
7013 ACE/P4A | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 19.5 | 14.6 | 17000 |
7013 ACE/P4BVG275 | DB DF DT DG | 25 | 65 mm | 100 mm | 18 mm | 19.5 | 14.6 | 17000 |
7013 CB/HCP4A | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 15.6 | 12.9 | 22000 |
7013 CB/P4A | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 15.6 | 12.9 | 18000 |
7013 CD/HCP4A | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 41.6 | 37.5 | 16000 |
7013 CD/P4A | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 41.6 | 37.5 | 14000 |
7013 CDTP/HCP4B | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 41.6 | 37.5 | 16000 |
7013 CDTP/P4B | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 41.6 | 37.5 | 14000 |
7013 CE/HCP4A | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 20.3 | 15.6 | 22000 |
7013 CE/HCP4BVG275 | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 20.3 | 15.6 | 22000 |
7013 CE/P4A | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 20.3 | 15.6 | 19000 |
7013 CE/P4BVG275 | DB DF DT DG | 15 | 65 mm | 100 mm | 18 mm | 20.3 | 15.6 | 19000 |
7213 ACD/HCP4A | DB DF DT DG | 25 | 65 mm | 120 mm | 23 mm | 63.7 | 51 | 13000 |
7213 ACD/P4A | DB DF DT DG | 25 | 65 mm | 120 mm | 23 mm | 63.7 | 51 | 10000 |
7213 CD/HCP4A | DB DF DT DG | 15 | 65 mm | 120 mm | 23 mm | 66.3 | 53 | 15000 |
7213 CD/P4A | DB DF DT DG | 15 | 65 mm | 120 mm | 23 mm | 66.3 | 53 | 12000 |
71914 ACB/HCP4A | DB DF DT DG | 25 | 70 mm | 100 mm | 16 mm | 13 | 11.8 | 19000 |
71914 ACB/P4A | DB DF DT DG | 25 | 70 mm | 100 mm | 16 mm | 13 | 11.8 | 16000 |
71914 ACD/HCP4A | DB DF DT DG | 25 | 70 mm | 100 mm | 16 mm | 32.5 | 32.5 | 14000 |
71914 ACD/P4A | DB DF DT DG | 25 | 70 mm | 100 mm | 16 mm | 32.5 | 32.5 | 11000 |
71914 ACE/HCP4A | DB DF DT DG | 25 | 70 mm | 100 mm | 16 mm | 20.8 | 15.3 | 20000 |
71914 ACE/P4A | DB DF DT DG | 25 | 70 mm | 100 mm | 16 mm | 20.8 | 15.3 | 16500 |
71914 CB/HCP4A | DB DF DT DG | 15 | 70 mm | 100 mm | 16 mm | 13.8 | 12.5 | 22000 |
71914 CB/P4A | DB DF DT DG | 15 | 70 mm | 100 mm | 16 mm | 13.8 | 12.5 | 18000 |
71914 CD/HCP4A | DB DF DT DG | 15 | 70 mm | 100 mm | 16 mm | 34.5 | 34 | 16000 |
71914 CD/P4A | DB DF DT DG | 15 | 70 mm | 100 mm | 16 mm | 34.5 | 34 | 13000 |
71914 CE/HCP4A | DB DF DT DG | 15 | 70 mm | 100 mm | 16 mm | 22.1 | 16.3 | 22000 |
71914 CE/P4A | DB DF DT DG | 15 | 70 mm | 100 mm | 16 mm | 22.1 | 16.3 | 18500 |
7014 ACB/HCP4A | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 18.2 | 15.6 | 18000 |
7014 ACB/P4A | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 18.2 | 15.6 | 15000 |
7014 ACD/HCP4A | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 48.8 | 44 | 13000 |
7014 ACD/P4A | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 48.8 | 44 | 11000 |
7014 ACDTP/HCP4B | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 48.8 | 44 | 13000 |
7014 ACDTP/P4B | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 48.8 | 44 | 11000 |
7014 ACE/HCP4A | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 22.5 | 17.3 | 18500 |
7014 ACE/HCP4BVG275 | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 22.5 | 17.3 | 18500 |
7014 ACE/P4A | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 22.5 | 17.3 | 15500 |
7014 ACE/P4BVG275 | DB DF DT DG | 25 | 70 mm | 110 mm | 20 mm | 22.5 | 17.3 | 15500 |
7014 CB/HCP4A | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 19 | 16.3 | 19000 |
7014 CB/P4A | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 19 | 16.3 | 17000 |
7014 CD/HCP4A | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 52 | 45.5 | 15000 |
7014 CD/P4A | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 52 | 45.5 | 12000 |
7014 CDTP/HCP4B | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 52 | 45.5 | 15000 |
7014 CDTP/P4B | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 52 | 45.5 | 12000 |
7014 CE/HCP4A | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 23.8 | 18.3 | 20500 |
7014 CE/HCP4BVG275 | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 23.8 | 18.3 | 20500 |
7014 CE/P4A | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 23.8 | 18.3 | 17000 |
7014 CE/P4BVG275 | DB DF DT DG | 15 | 70 mm | 110 mm | 20 mm | 23.8 | 18.3 | 17000 |
7214 ACD/HCP4A | DB DF DT DG | 25 | 70 mm | 125 mm | 24 mm | 66.3 | 55 | 12000 |
7214 ACD/P4A | DB DF DT DG | 25 | 70 mm | 125 mm | 24 mm | 66.3 | 55 | 9500 |
7214 CD/HCP4A | DB DF DT DG | 15 | 70 mm | 125 mm | 24 mm | 68.9 | 58.5 | 14000 |
7214 CD/P4A | DB DF DT DG | 15 | 70 mm | 125 mm | 24 mm | 68.9 | 58.5 | 11000 |
71915 ACB/HCP4A | DB DF DT DG | 25 | 75 mm | 105 mm | 16 mm | 13.3 | 12.5 | 18000 |
71915 ACB/P4A | DB DF DT DG | 25 | 75 mm | 105 mm | 16 mm | 13.3 | 12.5 | 15000 |
71915 ACD/HCP4A | DB DF DT DG | 25 | 75 mm | 105 mm | 16 mm | 33.8 | 35.5 | 13000 |
71915 ACD/P4A | DB DF DT DG | 25 | 75 mm | 105 mm | 16 mm | 33.8 | 35.5 | 10000 |
71915 ACE/HCP4A | DB DF DT DG | 25 | 75 mm | 105 mm | 16 mm | 21.2 | 16.3 | 18500 |
71915 ACE/P4A | DB DF DT DG | 25 | 75 mm | 105 mm | 16 mm | 21.2 | 16.3 | 15500 |
71915 CB/HCP4A | DB DF DT DG | 15 | 75 mm | 105 mm | 16 mm | 14 | 13.2 | 20000 |
71915 CB/P4A | DB DF DT DG | 15 | 75 mm | 105 mm | 16 mm | 14 | 13.2 | 17000 |
71915 CD/HCP4A | DB DF DT DG | 15 | 75 mm | 105 mm | 16 mm | 35.8 | 37.5 | 15000 |
71915 CD/P4A | DB DF DT DG | 15 | 75 mm | 105 mm | 16 mm | 35.8 | 37.5 | 12000 |
71915 CE/HCP4A | DB DF DT DG | 15 | 75 mm | 105 mm | 16 mm | 22.5 | 17 | 20500 |
71915 CE/P4A | DB DF DT DG | 15 | 75 mm | 105 mm | 16 mm | 22.5 | 17 | 17500 |
7015 ACB/HCP4A | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 19 | 16.6 | 17000 |
7015 ACB/P4A | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 19 | 16.6 | 14000 |
7015 ACD/HCP4A | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 49.4 | 46.5 | 13000 |
7015 ACD/P4A | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 49.4 | 46.5 | 10000 |
7015 ACDTP/HCP4B | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 49.4 | 46.5 | 13000 |
7015 ACDTP/P4B | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 49.4 | 46.5 | 10000 |
7015 ACE/HCP4A | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 24.7 | 20.4 | 17000 |
7015 ACE/P4A | DB DF DT DG | 25 | 75 mm | 115 mm | 20 mm | 24.7 | 20.4 | 14500 |
7015 CB/HCP4A | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 19.9 | 17.6 | 18000 |
7015 CB/P4A | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 19.9 | 17.6 | 16000 |
7015 CD/HCP4A | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 52.7 | 49 | 14000 |
7015 CD/P4A | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 52.7 | 49 | 11000 |
7015 CDTP/HCP4B | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 52.7 | 49 | 14000 |
7015 CDTP/P4B | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 52.7 | 49 | 11000 |
7015 CE/HCP4A | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 26 | 21.6 | 19000 |
7015 CE/P4A | DB DF DT DG | 15 | 75 mm | 115 mm | 20 mm | 26 | 21.6 | 16000 |
7215 ACD/HCP4A | DB DF DT DG | 25 | 75 mm | 130 mm | 25 mm | 68.9 | 58.5 | 11000 |
7215 ACD/P4A | DB DF DT DG | 25 | 75 mm | 130 mm | 25 mm | 68.9 | 58.5 | 9000 |
7215 CD/HCP4A | DB DF DT DG | 15 | 75 mm | 130 mm | 25 mm | 71.5 | 62 | 14000 |
7215 CD/P4A | DB DF DT DG | 15 | 75 mm | 130 mm | 25 mm | 71.5 | 62 | 10000 |
71916 ACB/HCP4A | DB DF DT DG | 25 | 80 mm | 110 mm | 16 mm | 14.8 | 14 | 17000 |
71916 ACB/P4A | DB DF DT DG | 25 | 80 mm | 110 mm | 16 mm | 14.8 | 14 | 14000 |
71916 ACD/HCP4A | DB DF DT DG | 25 | 80 mm | 110 mm | 16 mm | 34.5 | 36.5 | 12000 |
71916 ACD/P4A | DB DF DT DG | 25 | 80 mm | 110 mm | 16 mm | 34.5 | 36.5 | 9500 |
71916 ACE/HCP4A | DB DF DT DG | 25 | 80 mm | 110 mm | 16 mm | 21.2 | 17 | 17500 |
71916 ACE/P4A | DB DF DT DG | 25 | 80 mm | 110 mm | 16 mm | 21.2 | 17 | 14500 |
71916 CB/HCP4A | DB DF DT DG | 15 | 80 mm | 110 mm | 16 mm | 15.6 | 15 | 19000 |
71916 CB/P4A | DB DF DT DG | 15 | 80 mm | 110 mm | 16 mm | 15.6 | 15 | 16000 |
71916 CD/HCP4A | DB DF DT DG | 15 | 80 mm | 110 mm | 16 mm | 36.4 | 39 | 15000 |
71916 CD/P4A | DB DF DT DG | 15 | 80 mm | 110 mm | 16 mm | 36.4 | 39 | 11000 |
71916 CE/HCP4A | DB DF DT DG | 15 | 80 mm | 110 mm | 16 mm | 22.5 | 18 | 19000 |
71916 CE/P4A | DB DF DT DG | 15 | 80 mm | 110 mm | 16 mm | 22.5 | 18 | 16500 |
7016 ACB/HCP4A | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 25.1 | 21.6 | 15000 |
7016 ACB/P4A | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 25.1 | 21.6 | 12000 |
7016 ACD/HCP4A | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 62.4 | 58.5 | 12000 |
7016 ACD/P4A | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 62.4 | 58.5 | 9500 |
7016 ACDTP/HCP4B | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 62.4 | 58.5 | 12000 |
7016 ACDTP/P4B | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 62.4 | 58.5 | 9500 |
7016 ACE/HCP4A | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 32.5 | 26.5 | 15500 |
7016 ACE/HCP4BVG275 | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 32.5 | 26.5 | 15500 |
7016 ACE/P4A | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 32.5 | 26.5 | 13700 |
7016 ACE/P4BVG275 | DB DF DT DG | 25 | 80 mm | 125 mm | 22 mm | 32.5 | 26.5 | 13700 |
7016 CB/HCP4A | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 26.5 | 22.8 | 17000 |
7016 CB/P4A | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 26.5 | 22.8 | 14000 |
7016 CD/HCP4A | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 65 | 61 | 13000 |
7016 CD/P4A | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 65 | 61 | 10000 |
7016 CDTP/HCP4B | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 65 | 61 | 13000 |
7016 CDTP/P4B | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 65 | 61 | 10000 |
7016 CE/HCP4A | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 33.8 | 28 | 17500 |
7016 CE/HCP4BVG275 | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 33.8 | 28 | 17500 |
7016 CE/P4A | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 33.8 | 28 | 15000 |
7016 CE/P4BVG275 | DB DF DT DG | 15 | 80 mm | 125 mm | 22 mm | 33.8 | 28 | 15000 |
7216 ACD/HCP4A | DB DF DT DG | 25 | 80 mm | 140 mm | 26 mm | 81.9 | 72 | 10000 |
7216 ACD/P4A | DB DF DT DG | 25 | 80 mm | 140 mm | 26 mm | 81.9 | 72 | 8500 |
7216 CD/HCP4A | DB DF DT DG | 15 | 80 mm | 140 mm | 26 mm | 85.2 | 75 | 12000 |
7216 CD/P4A | DB DF DT DG | 15 | 80 mm | 140 mm | 26 mm | 85.2 | 75 | 9500 |
71917 ACB/HCP4A | DB DF DT DG | 25 | 85 mm | 120 mm | 18 mm | 15.3 | 15.3 | 16000 |
71917 ACB/P4A | DB DF DT DG | 25 | 85 mm | 120 mm | 18 mm | 15.3 | 15.3 | 13000 |
71917 ACD/HCP4A | DB DF DT DG | 25 | 85 mm | 120 mm | 18 mm | 43.6 | 45.5 | 11000 |
71917 ACD/P4A | DB DF DT DG | 25 | 85 mm | 120 mm | 18 mm | 43.6 | 45.5 | 9000 |
71917 ACE/HCP4A | DB DF DT DG | 25 | 85 mm | 120 mm | 18 mm | 28.1 | 22 | 16500 |
71917 ACE/P4A | DB DF DT DG | 25 | 85 mm | 120 mm | 18 mm | 28.1 | 22 | 13700 |
71917 CB/HCP4A | DB DF DT DG | 15 | 85 mm | 120 mm | 18 mm | 16.3 | 16.3 | 18000 |
71917 CB/P4A | DB DF DT DG | 15 | 85 mm | 120 mm | 18 mm | 16.3 | 16.3 | 15000 |
71917 CD/HCP4A | DB DF DT DG | 15 | 85 mm | 120 mm | 18 mm | 46.2 | 48 | 14000 |
71917 CD/P4A | DB DF DT DG | 15 | 85 mm | 120 mm | 18 mm | 46.2 | 48 | 10000 |
71917 CE/HCP4A | DB DF DT DG | 15 | 85 mm | 120 mm | 18 mm | 29.6 | 23.2 | 18000 |
71917 CE/P4A | DB DF DT DG | 15 | 85 mm | 120 mm | 18 mm | 29.6 | 23.2 | 15500 |
7017 ACB/HCP4A | DB DF DT DG | 25 | 85 mm | 130 mm | 22 mm | 25.1 | 22.4 | 14000 |
7017 ACB/P4A | DB DF DT DG | 25 | 85 mm | 130 mm | 22 mm | 25.1 | 22.4 | 12000 |
7017 ACD/HCP4A | DB DF DT DG | 25 | 85 mm | 130 mm | 22 mm | 63.7 | 62 | 11000 |
7017 ACD/P4A | DB DF DT DG | 25 | 85 mm | 130 mm | 22 mm | 63.7 | 62 | 9000 |
7017 ACE/HCP4A | DB DF DT DG | 25 | 85 mm | 130 mm | 22 mm | 32.5 | 28 | 15000 |
7017 ACE/P4A | DB DF DT DG | 25 | 85 mm | 130 mm | 22 mm | 32.5 | 28 | 13000 |
7017 CB/HCP4A | DB DF DT DG | 15 | 85 mm | 130 mm | 22 mm | 27 | 23.6 | 16000 |
7017 CB/P4A | DB DF DT DG | 15 | 85 mm | 130 mm | 22 mm | 27 | 23.6 | 13000 |
7017 CD/HCP4A | DB DF DT DG | 15 | 85 mm | 130 mm | 22 mm | 67.6 | 65.5 | 12000 |
7017 CD/P4A | DB DF DT DG | 15 | 85 mm | 130 mm | 22 mm | 67.6 | 65.5 | 10000 |
7017 CE/HCP4A | DB DF DT DG | 15 | 85 mm | 130 mm | 22 mm | 34.5 | 29 | 16500 |
7017 CE/P4A | DB DF DT DG | 15 | 85 mm | 130 mm | 22 mm | 34.5 | 29 | 14000 |
71918 ACB/HCP4A | DB DF DT DG | 25 | 90 mm | 125 mm | 18 mm | 16.8 | 16.6 | 15000 |
71918 ACB/P4A | DB DF DT DG | 25 | 90 mm | 125 mm | 18 mm | 16.8 | 16.6 | 12000 |
71918 ACD/HCP4A | DB DF DT DG | 25 | 90 mm | 125 mm | 18 mm | 44.2 | 48 | 10000 |
71918 ACD/P4A | DB DF DT DG | 25 | 90 mm | 125 mm | 18 mm | 44.2 | 48 | 8500 |
71918 ACE/HCP4A | DB DF DT DG | 25 | 90 mm | 125 mm | 18 mm | 28.6 | 23.2 | 15500 |
71918 ACE/P4A | DB DF DT DG | 25 | 90 mm | 125 mm | 18 mm | 28.6 | 23.2 | 13000 |
71918 CB/HCP4A | DB DF DT DG | 15 | 90 mm | 125 mm | 18 mm | 17.8 | 17.6 | 16000 |
71918 CB/P4A | DB DF DT DG | 15 | 90 mm | 125 mm | 18 mm | 17.8 | 17.6 | 14000 |
71918 CD/HCP4A | DB DF DT DG | 15 | 90 mm | 125 mm | 18 mm | 47.5 | 51 | 13000 |
71918 CD/P4A | DB DF DT DG | 15 | 90 mm | 125 mm | 18 mm | 47.5 | 51 | 9500 |
71918 CE/HCP4A | DB DF DT DG | 15 | 90 mm | 125 mm | 18 mm | 30.2 | 24.5 | 17000 |
71918 CE/P4A | DB DF DT DG | 15 | 90 mm | 125 mm | 18 mm | 30.2 | 24.5 | 14500 |
7018 ACB/HCP4A | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 27 | 23.6 | 13000 |
7018 ACB/P4A | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 27 | 23.6 | 11000 |
7018 ACD/HCP4A | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 74.1 | 72 | 10000 |
7018 ACD/P4A | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 74.1 | 72 | 8500 |
7018 ACDTP/HCP4B | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 74.1 | 72 | 10000 |
7018 ACDTP/P4B | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 74.1 | 72 | 8500 |
7018 ACE/HCP4A | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 33.8 | 30 | 14000 |
7018 ACE/HCP4BVG275 | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 33.8 | 30 | 14000 |
7018 ACE/P4A | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 33.8 | 30 | 12000 |
7018 ACE/P4BVG275 | DB DF DT DG | 25 | 90 mm | 140 mm | 24 mm | 33.8 | 30 | 12000 |
7018 CB/HCP4A | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 29.1 | 25 | 15000 |
7018 CB/P4A | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 29.1 | 25 | 12000 |
7018 CD/HCP4A | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 79.3 | 76.5 | 11000 |
7018 CD/P4A | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 79.3 | 76.5 | 9000 |
7018 CDTP/HCP4B | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 79.3 | 76.5 | 11000 |
7018 CDTP/P4B | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 79.3 | 76.5 | 9000 |
7018 CE/HCP4A | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 35.8 | 32 | 15500 |
7018 CE/HCP4BVG275 | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 35.8 | 32 | 15500 |
7018 CE/P4A | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 35.8 | 32 | 13300 |
7018 CE/P4BVG275 | DB DF DT DG | 15 | 90 mm | 140 mm | 24 mm | 35.8 | 32 | 13300 |
71919 ACB/HCP4A | DB DF DT DG | 25 | 95 mm | 130 mm | 18 mm | 17.2 | 17.6 | 14000 |
71919 ACB/P4A | DB DF DT DG | 25 | 95 mm | 130 mm | 18 mm | 17.2 | 17.6 | 12000 |
71919 ACD/HCP4A | DB DF DT DG | 25 | 95 mm | 130 mm | 18 mm | 46.2 | 52 | 10000 |
71919 ACD/P4A | DB DF DT DG | 25 | 95 mm | 130 mm | 18 mm | 46.2 | 52 | 8500 |
71919 ACE/HCP4A | DB DF DT DG | 25 | 95 mm | 130 mm | 18 mm | 29.1 | 24 | 15000 |
71919 ACE/P4A | DB DF DT DG | 25 | 95 mm | 130 mm | 18 mm | 29.1 | 24 | 12300 |
71919 CB/HCP4A | DB DF DT DG | 15 | 95 mm | 130 mm | 18 mm | 18.2 | 18.6 | 16000 |
71919 CB/P4A | DB DF DT DG | 15 | 95 mm | 130 mm | 18 mm | 18.2 | 18.6 | 13000 |
71919 CD/HCP4A | DB DF DT DG | 15 | 95 mm | 130 mm | 18 mm | 49.4 | 55 | 11000 |
71919 CD/P4A | DB DF DT DG | 15 | 95 mm | 130 mm | 18 mm | 49.4 | 55 | 9500 |
71919 CE/HCP4A | DB DF DT DG | 15 | 95 mm | 130 mm | 18 mm | 30.7 | 25.5 | 16000 |
71919 CE/P4A | DB DF DT DG | 15 | 95 mm | 130 mm | 18 mm | 30.7 | 25.5 | 14000 |
7019 ACB/HCP4A | DB DF DT DG | 25 | 95 mm | 145 mm | 24 mm | 27.6 | 24.5 | 13000 |
7019 ACB/P4A | DB DF DT DG | 25 | 95 mm | 145 mm | 24 mm | 27.6 | 24.5 | 11000 |
7019 ACD/HCP4A | DB DF DT DG | 25 | 95 mm | 145 mm | 24 mm | 76.1 | 76.5 | 10000 |
7019 ACD/P4A | DB DF DT DG | 25 | 95 mm | 145 mm | 24 mm | 76.1 | 76.5 | 8000 |
7019 ACE/HCP4A | DB DF DT DG | 25 | 95 mm | 145 mm | 24 mm | 41.6 | 36 | 13300 |
7019 ACE/P4A | DB DF DT DG | 25 | 95 mm | 145 mm | 24 mm | 41.6 | 36 | 11500 |
7019 CB/HCP4A | DB DF DT DG | 15 | 95 mm | 145 mm | 24 mm | 29.6 | 26 | 14000 |
7019 CB/P4A | DB DF DT DG | 15 | 95 mm | 145 mm | 24 mm | 29.6 | 26 | 12000 |
7019 CD/HCP4A | DB DF DT DG | 15 | 95 mm | 145 mm | 24 mm | 81.9 | 80 | 11000 |
7019 CD/P4A | DB DF DT DG | 15 | 95 mm | 145 mm | 24 mm | 81.9 | 80 | 8500 |
7019 CE/HCP4A | DB DF DT DG | 15 | 95 mm | 145 mm | 24 mm | 44.2 | 38 | 15000 |
7019 CE/P4A | DB DF DT DG | 15 | 95 mm | 145 mm | 24 mm | 44.2 | 38 | 12700 |
71920 ACB/HCP4A | DB DF DT DG | 25 | 100 mm | 140 mm | 20 mm | 20.3 | 21.2 | 13000 |
71920 ACB/P4A | DB DF DT DG | 25 | 100 mm | 140 mm | 20 mm | 20.3 | 21.2 | 11000 |
71920 ACD/HCP4A | DB DF DT DG | 25 | 100 mm | 140 mm | 20 mm | 57.2 | 63 | 9500 |
71920 ACD/P4A | DB DF DT DG | 25 | 100 mm | 140 mm | 20 mm | 57.2 | 63 | 8000 |
71920 ACE/HCP4A | DB DF DT DG | 25 | 100 mm | 140 mm | 20 mm | 36.4 | 30 | 13700 |
71920 ACE/P4A | DB DF DT DG | 25 | 100 mm | 140 mm | 20 mm | 36.4 | 30 | 11500 |
71920 CB/HCP4A | DB DF DT DG | 15 | 100 mm | 140 mm | 20 mm | 21.6 | 22.4 | 15000 |
71920 CB/P4A | DB DF DT DG | 15 | 100 mm | 140 mm | 20 mm | 21.6 | 22.4 | 12000 |
71920 CD/HCP4A | DB DF DT DG | 15 | 100 mm | 140 mm | 20 mm | 60.5 | 65.5 | 11000 |
71920 CD/P4A | DB DF DT DG | 15 | 100 mm | 140 mm | 20 mm | 60.5 | 65.5 | 9000 |
71920 CE/HCP4A | DB DF DT DG | 15 | 100 mm | 140 mm | 20 mm | 39 | 31.5 | 15500 |
71920 CE/P4A | DB DF DT DG | 15 | 100 mm | 140 mm | 20 mm | 39 | 31.5 | 13300 |
7020 ACB/HCP4A | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 28.1 | 25.5 | 12000 |
7020 ACB/P4A | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 28.1 | 25.5 | 10000 |
7020 ACD/HCP4A | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 79.3 | 80 | 9500 |
7020 ACD/P4A | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 79.3 | 80 | 8000 |
7020 ACDTP/HCP4B | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 79.3 | 80 | 9500 |
7020 ACDTP/P4B | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 79.3 | 80 | 8000 |
7020 ACE/HCP4A | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 42.3 | 38 | 12700 |
7020 ACE/HCP4BVG275 | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 42.3 | 38 | 12700 |
7020 ACE/P4A | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 42.3 | 38 | 11200 |
7020 ACE/P4BVG275 | DB DF DT DG | 25 | 100 mm | 150 mm | 24 mm | 42.3 | 38 | 11200 |
7020 CB/HCP4A | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 29.6 | 27 | 13000 |
7020 CB/P4A | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 29.6 | 27 | 11000 |
7020 CD/HCP4A | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 83.2 | 85 | 10000 |
7020 CD/P4A | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 83.2 | 85 | 8500 |
7020 CDTP/HCP4B | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 83.2 | 85 | 10000 |
7020 CDTP/P4B | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 83.2 | 85 | 8500 |
7020 CE/HCP4A | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 44.9 | 40 | 14500 |
7020 CE/HCP4BVG275 | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 44.9 | 40 | 14500 |
7020 CE/P4A | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 44.9 | 40 | 12300 |
7020 CE/P4BVG275 | DB DF DT DG | 15 | 100 mm | 150 mm | 24 mm | 44.9 | 40 | 12300 |
71921 ACD/HCP4A | DB DF DT DG | 25 | 105 mm | 145 mm | 20 mm | 57.2 | 65.5 | 9000 |
71921 ACD/P4A | DB DF DT DG | 25 | 105 mm | 145 mm | 20 mm | 57.2 | 65.5 | 7500 |
71921 CD/HCP4A | DB DF DT DG | 15 | 105 mm | 145 mm | 20 mm | 61.8 | 69.5 | 10000 |
71921 CD/P4A | DB DF DT DG | 15 | 105 mm | 145 mm | 20 mm | 61.8 | 69.5 | 8500 |
7021 ACD/HCP4A | DB DF DT DG | 25 | 105 mm | 160 mm | 26 mm | 90.4 | 93 | 9000 |
7021 ACD/P4A | DB DF DT DG | 25 | 105 mm | 160 mm | 26 mm | 90.4 | 93 | 7500 |
7021 CD/HCP4A | DB DF DT DG | 15 | 105 mm | 160 mm | 26 mm | 95.6 | 96.5 | 10000 |
7021 CD/P4A | DB DF DT DG | 15 | 105 mm | 160 mm | 26 mm | 95.6 | 96.5 | 8000 |
71922 ACB/HCP4A | DB DF DT DG | 25 | 110 mm | 150 mm | 20 mm | 24.7 | 25.5 | 12000 |
71922 ACB/P4A | DB DF DT DG | 25 | 110 mm | 150 mm | 20 mm | 24.7 | 25.5 | 10000 |
71922 ACD/HCP4A | DB DF DT DG | 25 | 110 mm | 150 mm | 20 mm | 58.5 | 68 | 8500 |
71922 ACD/P4A | DB DF DT DG | 25 | 110 mm | 150 mm | 20 mm | 58.5 | 68 | 7500 |
71922 ACE/HCP4A | DB DF DT DG | 25 | 110 mm | 150 mm | 20 mm | 37.7 | 32.5 | 12300 |
71922 ACE/P4A | DB DF DT DG | 25 | 110 mm | 150 mm | 20 mm | 37.7 | 32.5 | 10300 |
71922 CB/HCP4A | DB DF DT DG | 15 | 110 mm | 150 mm | 20 mm | 26 | 27 | 14000 |
71922 CB/P4A | DB DF DT DG | 15 | 110 mm | 150 mm | 20 mm | 26 | 27 | 11000 |
71922 CD/HCP4A | DB DF DT DG | 15 | 110 mm | 150 mm | 20 mm | 62.4 | 72 | 10000 |
71922 CD/P4A | DB DF DT DG | 15 | 110 mm | 150 mm | 20 mm | 62.4 | 72 | 8000 |
71922 CE/HCP4A | DB DF DT DG | 15 | 110 mm | 150 mm | 20 mm | 39.7 | 34.5 | 14000 |
71922 CE/P4A | DB DF DT DG | 15 | 110 mm | 150 mm | 20 mm | 39.7 | 34.5 | 12000 |
7022 ACB/HCP4A | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 35.1 | 34 | 11000 |
7022 ACB/P4A | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 35.1 | 34 | 9000 |
7022 ACD/HCP4A | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 104 | 104 | 8500 |
7022 ACD/P4A | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 104 | 104 | 7000 |
7022 ACDTP/HCP4B | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 104 | 104 | 8500 |
7022 ACDTP/P4B | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 104 | 104 | 7000 |
7022 ACE/HCP4A | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 44.9 | 42.5 | 11500 |
7022 ACE/P4A | DB DF DT DG | 25 | 110 mm | 170 mm | 28 mm | 44.9 | 42.5 | 10000 |
7022 CB/HCP4A | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 37.1 | 36 | 12000 |
7022 CB/P4A | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 37.1 | 36 | 10000 |
7022 CD/HCP4A | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 111 | 108 | 9500 |
7022 CD/P4A | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 111 | 108 | 7500 |
7022 CDTP/HCP4B | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 111 | 108 | 9500 |
7022 CDTP/P4B | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 111 | 108 | 7500 |
7022 CE/HCP4A | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 47.5 | 45 | 12700 |
7022 CE/P4A | DB DF DT DG | 15 | 110 mm | 170 mm | 28 mm | 47.5 | 45 | 10900 |
71924 ACB/HCP4A | DB DF DT DG | 25 | 120 mm | 165 mm | 22 mm | 25.5 | 28.5 | 11000 |
71924 ACB/P4A | DB DF DT DG | 25 | 120 mm | 165 mm | 22 mm | 25.5 | 28.5 | 9000 |
71924 ACD/HCP4A | DB DF DT DG | 25 | 120 mm | 165 mm | 22 mm | 72.8 | 86.5 | 8000 |
71924 ACD/P4A | DB DF DT DG | 25 | 120 mm | 165 mm | 22 mm | 72.8 | 86.5 | 7000 |
71924 ACE/HCP4A | DB DF DT DG | 25 | 120 mm | 165 mm | 22 mm | 44.9 | 38 | 11500 |
71924 ACE/P4A | DB DF DT DG | 25 | 120 mm | 165 mm | 22 mm | 44.9 | 38 | 9500 |
71924 CB/HCP4A | DB DF DT DG | 15 | 120 mm | 165 mm | 22 mm | 27 | 30.5 | 12000 |
71924 CB/P4A | DB DF DT DG | 15 | 120 mm | 165 mm | 22 mm | 27 | 30.5 | 10000 |
71924 CD/HCP4A | DB DF DT DG | 15 | 120 mm | 165 mm | 22 mm | 78 | 91.5 | 9000 |
71924 CD/P4A | DB DF DT DG | 15 | 120 mm | 165 mm | 22 mm | 78 | 91.5 | 7500 |
71924 CE/HCP4A | DB DF DT DG | 15 | 120 mm | 165 mm | 22 mm | 47.5 | 40.5 | 12700 |
71924 CE/P4A | DB DF DT DG | 15 | 120 mm | 165 mm | 22 mm | 47.5 | 40.5 | 11200 |
7024 ACB/HCP4A | DB DF DT DG | 25 | 120 mm | 180 mm | 28 mm | 35.8 | 36.5 | 10000 |
7024 ACB/P4A | DB DF DT DG | 25 | 120 mm | 180 mm | 28 mm | 35.8 | 36.5 | 8500 |
7024 ACD/HCP4A | DB DF DT DG | 25 | 120 mm | 180 mm | 28 mm | 111 | 116 | 8000 |
7024 ACD/P4A | DB DF DT DG | 25 | 120 mm | 180 mm | 28 mm | 111 | 116 | 6700 |
7024 ACE/HCP4A | DB DF DT DG | 25 | 120 mm | 180 mm | 28 mm | 54 | 52 | 10000 |
7024 ACE/P4A | DB DF DT DG | 25 | 120 mm | 180 mm | 28 mm | 54 | 52 | 8300 |
7024 CB/HCP4A | DB DF DT DG | 15 | 120 mm | 180 mm | 28 mm | 37.7 | 39 | 11000 |
7024 CB/P4A | DB DF DT DG | 15 | 120 mm | 180 mm | 28 mm | 37.7 | 39 | 9500 |
7024 CD/HCP4A | DB DF DT DG | 15 | 120 mm | 180 mm | 28 mm | 114 | 122 | 8500 |
7024 CD/P4A | DB DF DT DG | 15 | 120 mm | 180 mm | 28 mm | 114 | 122 | 7000 |
7024 CE/HCP4A | DB DF DT DG | 15 | 120 mm | 180 mm | 28 mm | 57.2 | 55 | 11200 |
7024 CE/P4A | DB DF DT DG | 15 | 120 mm | 180 mm | 28 mm | 57.2 | 55 | 9300 |
71926 ACD/HCP4A | DB DF DT DG | 25 | 130 mm | 180 mm | 24 mm | 87.1 | 102 | 7500 |
71926 ACD/P4A | DB DF DT DG | 25 | 130 mm | 180 mm | 24 mm | 87.1 | 102 | 6700 |
71926 CD/HCP4A | DB DF DT DG | 15 | 130 mm | 180 mm | 24 mm | 92.3 | 108 | 8500 |
71926 CD/P4A | DB DF DT DG | 15 | 130 mm | 180 mm | 24 mm | 92.3 | 108 | 7000 |
7026 ACD/HCP4A | DB DF DT DG | 25 | 130 mm | 200 mm | 33 mm | 140 | 150 | 7500 |
7026 ACD/P4A | DB DF DT DG | 25 | 130 mm | 200 mm | 33 mm | 140 | 150 | 6000 |
7026 CD/HCP4A | DB DF DT DG | 15 | 130 mm | 200 mm | 33 mm | 148 | 156 | 8000 |
7026 CD/P4A | DB DF DT DG | 15 | 130 mm | 200 mm | 33 mm | 148 | 156 | 7000 |
71928 ACD/HCP4A | DB DF DT DG | 25 | 140 mm | 190 mm | 24 mm | 90.4 | 110 | 7000 |
71928 ACD/P4A | DB DF DT DG | 25 | 140 mm | 190 mm | 24 mm | 90.4 | 110 | 6000 |
71928 CD/HCP4A | DB DF DT DG | 15 | 140 mm | 190 mm | 24 mm | 95.6 | 116 | 8000 |
71928 CD/P4A | DB DF DT DG | 15 | 140 mm | 190 mm | 24 mm | 95.6 | 116 | 6700 |
7028 ACD/HCP4A | DB DF DT DG | 25 | 140 mm | 210 mm | 33 mm | 146 | 156 | 7000 |
7028 ACD/P4A | DB DF DT DG | 25 | 140 mm | 210 mm | 33 mm | 146 | 156 | 5600 |
7028 CD/HCP4A | DB DF DT DG | 15 | 140 mm | 210 mm | 33 mm | 153 | 166 | 7500 |
7028 CD/P4A | DB DF DT DG | 15 | 140 mm | 210 mm | 33 mm | 153 | 166 | 6700 |
71930 ACD/HCP4A | DB DF DT DG | 25 | 150 mm | 210 mm | 28 mm | 108 | 125 | 6700 |
71930 ACD/P4A | DB DF DT DG | 25 | 150 mm | 210 mm | 28 mm | 108 | 125 | 5600 |
71930 CD/HCP4A | DB DF DT DG | 15 | 150 mm | 210 mm | 28 mm | 114 | 132 | 7500 |
71930 CD/P4A | DB DF DT DG | 15 | 150 mm | 210 mm | 28 mm | 114 | 132 | 6300 |
7030 ACD/HCP4A | DB DF DT DG | 25 | 150 mm | 225 mm | 35 mm | 163 | 180 | 6700 |
7030 ACD/P4A | DB DF DT DG | 25 | 150 mm | 225 mm | 35 mm | 163 | 180 | 5300 |
7030 CD/HCP4A | DB DF DT DG | 15 | 150 mm | 225 mm | 35 mm | 172 | 190 | 7000 |
7030 CD/P4A | DB DF DT DG | 15 | 150 mm | 225 mm | 35 mm | 172 | 190 | 6000 |
Shanghai DMAG Bearing (formerly known as MAG bearing) is an international bearing distributor locating in the center of a global innovation hub-Shanghai.
Integrity, Innovation, and Cooperation are our core values and the driving force for the development of the company.
DMAG supplies more than 2000 specifications of various bearings, with inner diameter from 1mm to 2000mm.Complied with international standards, we serve a wide array of clients in the worldwide OEM market and aftermarket.
At DMAG, we continue adding new and innovative showpieces to our product lines. We value each new opportunity and partnership, and take each of client’s requirement seriously.
We also encourage our partners and clients to join us in engaging green environmental strategies and sustainable business practices both locally and internationally.
DMAG strives for quality excellence and total customer satisfaction. We tailor our services to meet the individual needs. Contact us now to find out your reliable and cost-effective bearing solutions.
